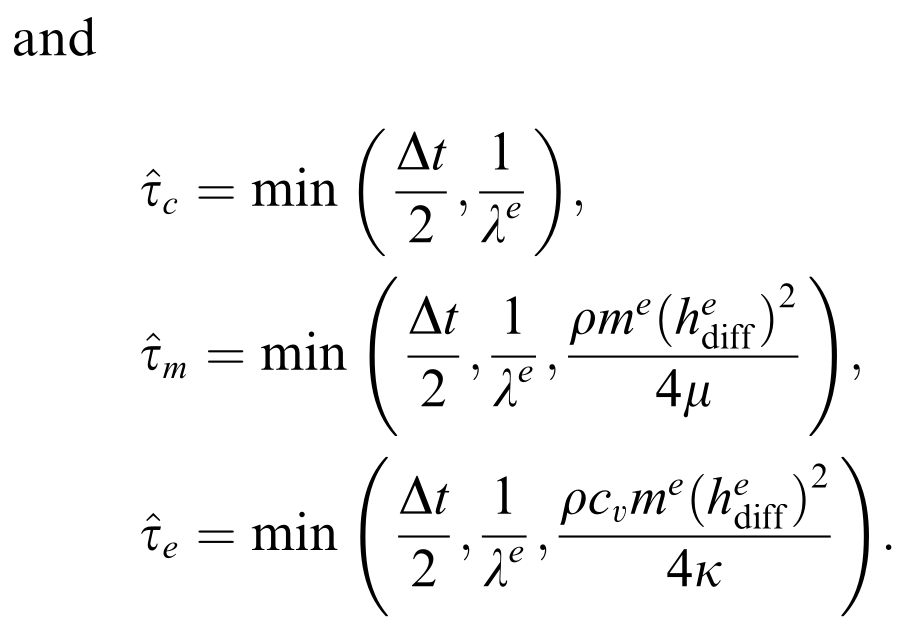

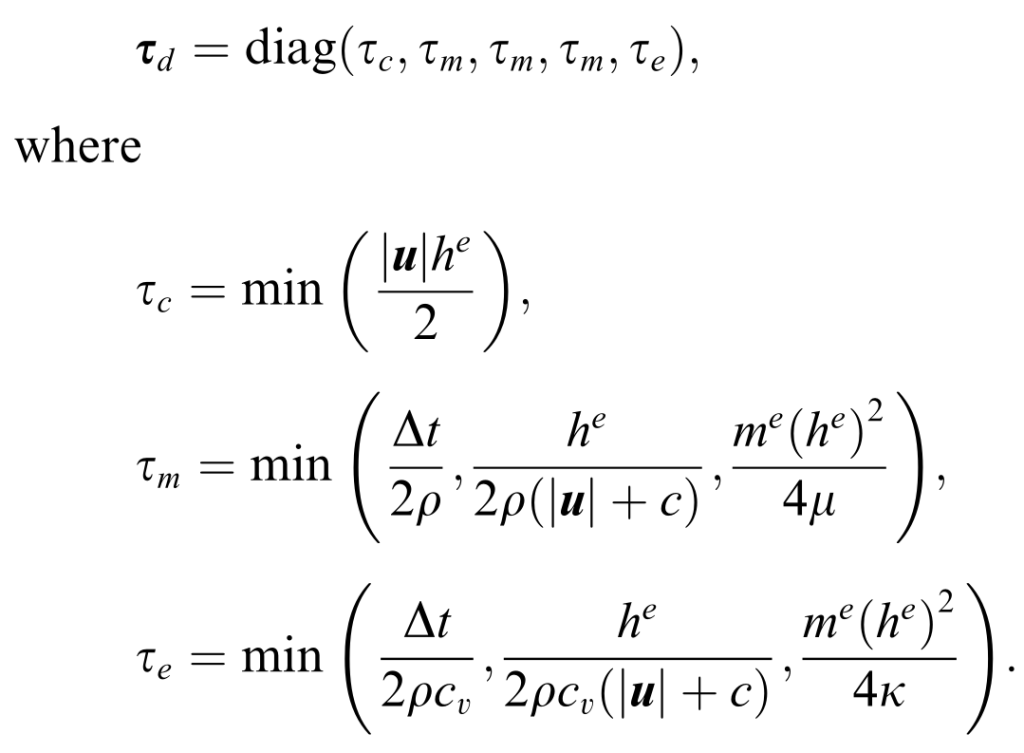

The expression for the compressible diagonal tau is (Hauke, 2001):

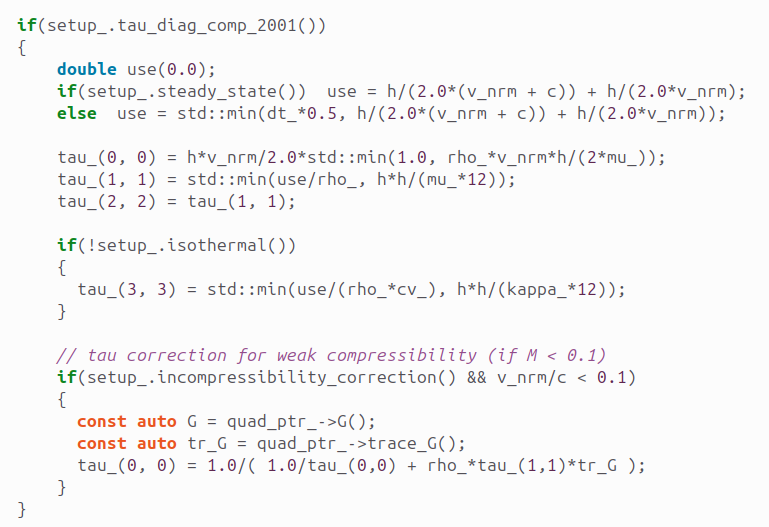

The piece of the code that implements it is:

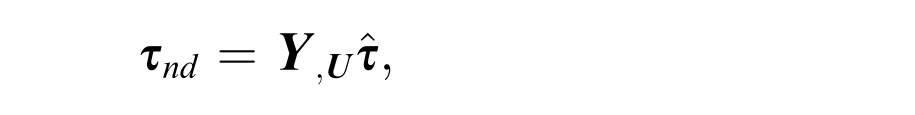

Further, the expression for the non-diagonal version is (Hauke, 2001):

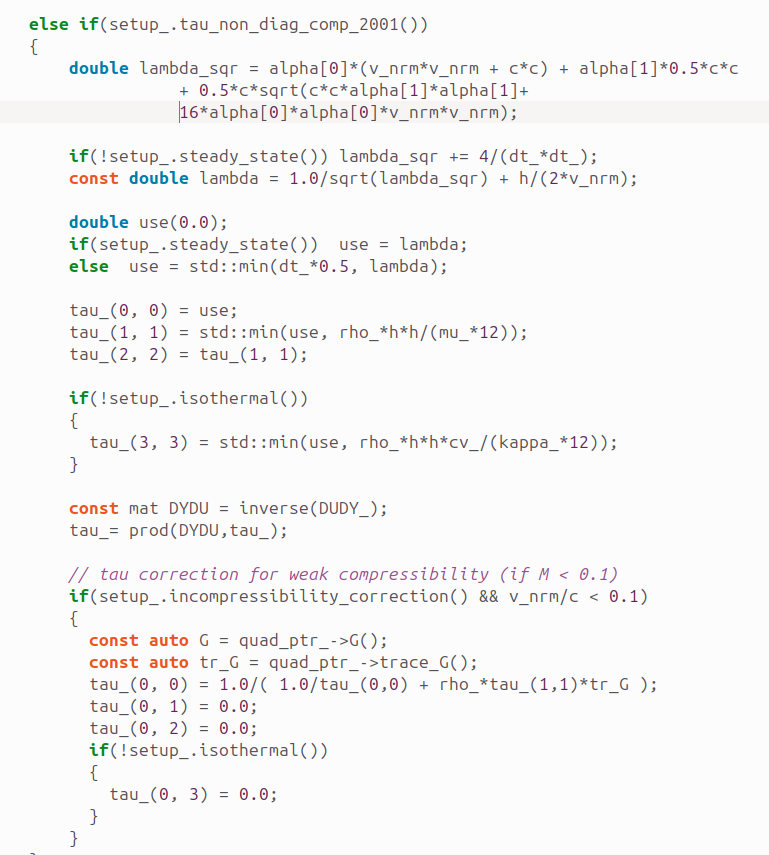

So that the implementation of the non-diagonal tau is:

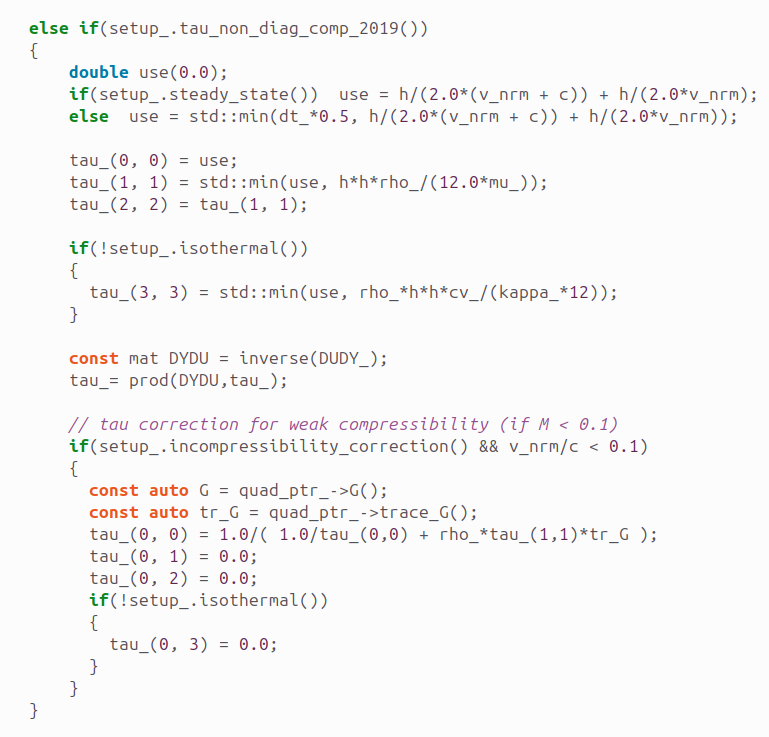

The non-diagonal tau of 2019 is implemented as:

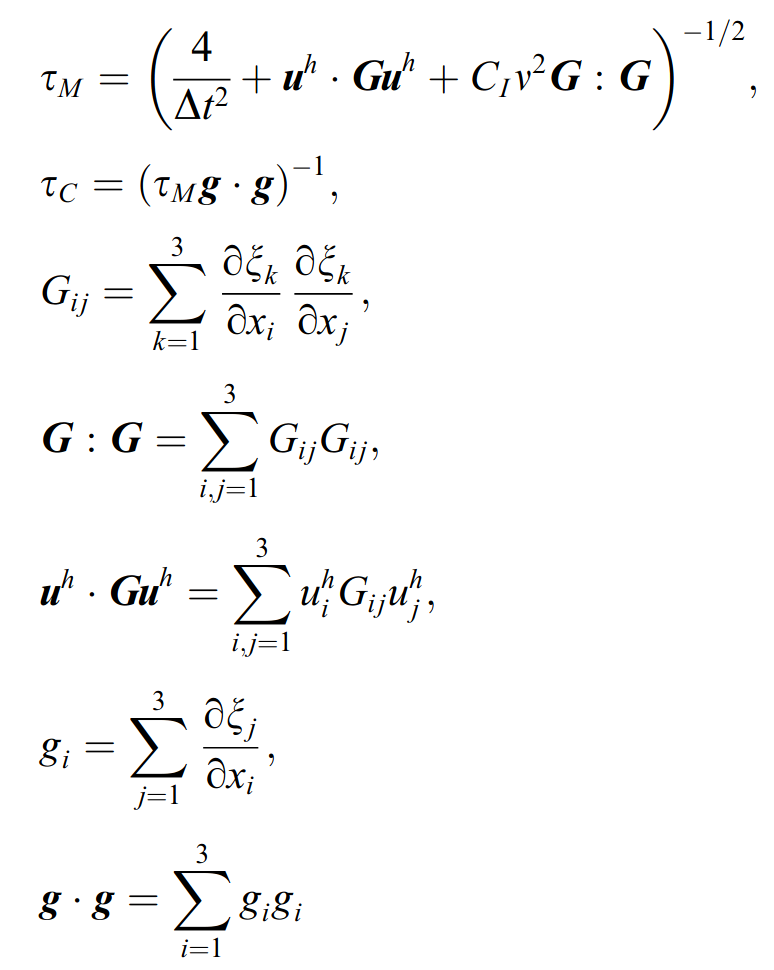

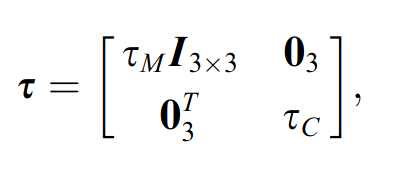

The algorithmic formulation of this version of tau (Bazilev et al., 2007) is:

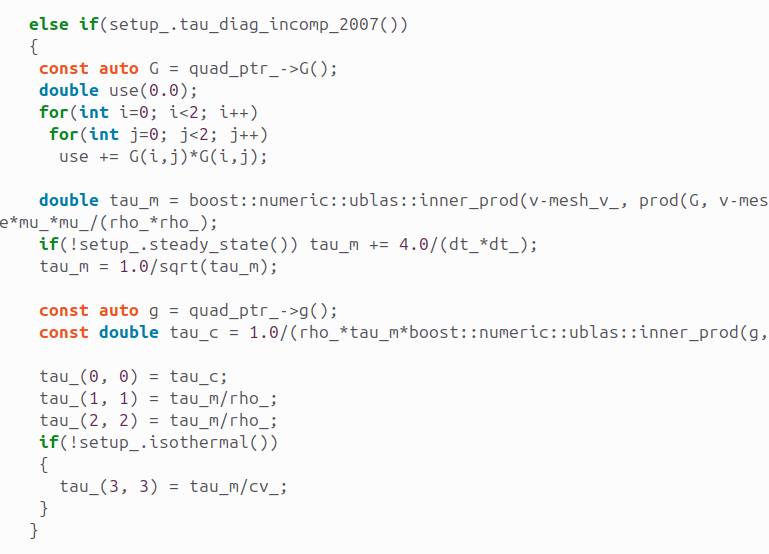

The 2007 diagonal incompressible tau is implemented as follow:

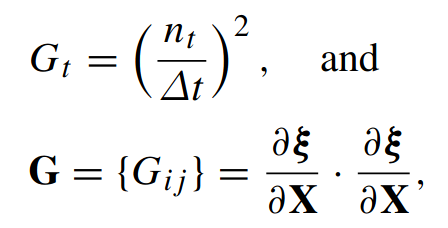

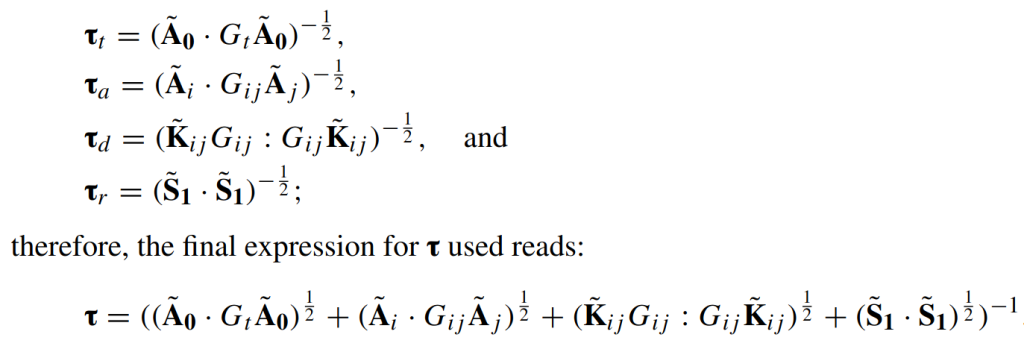

The 2014 tau by Trelles, J. P., & Modirkhazeni, S. M. (2014) reads:

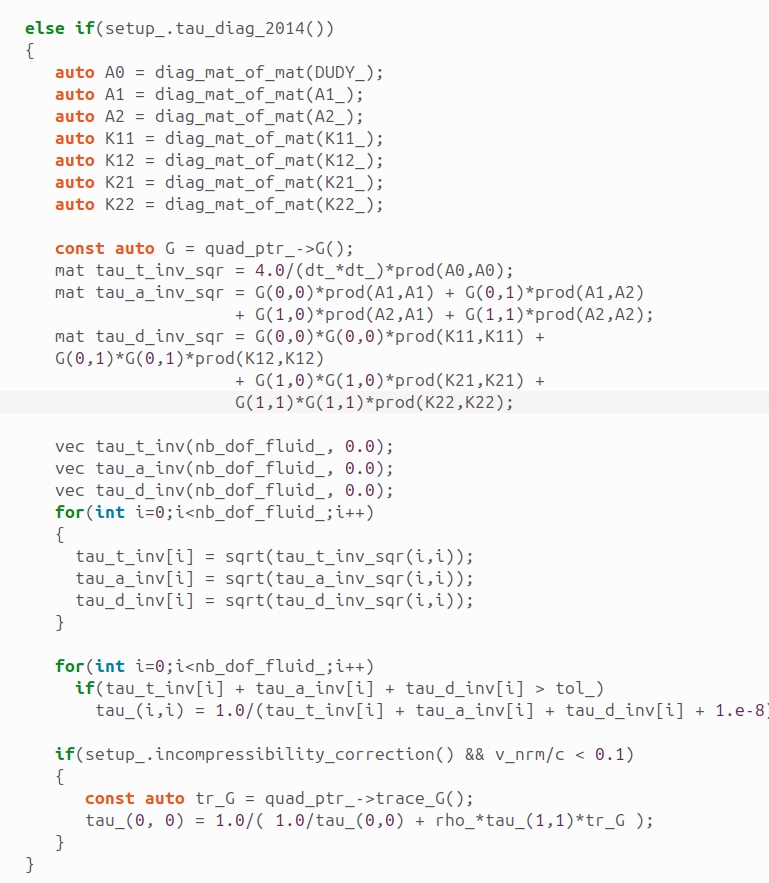

The coding for the 2014 tau version is:

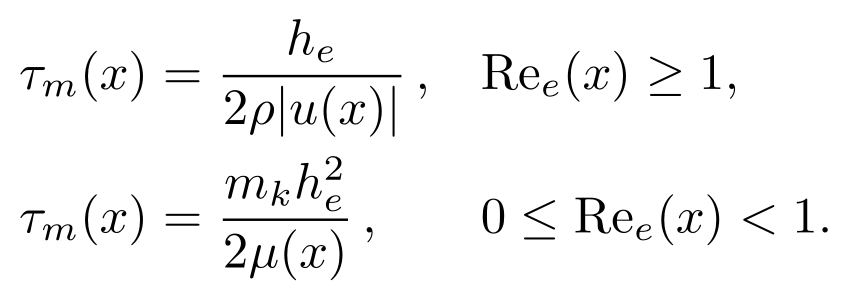

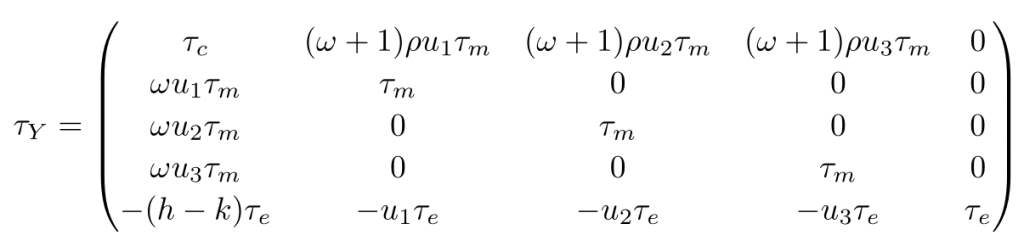

The non-diagonal tau developed by Polner (2005) reads:

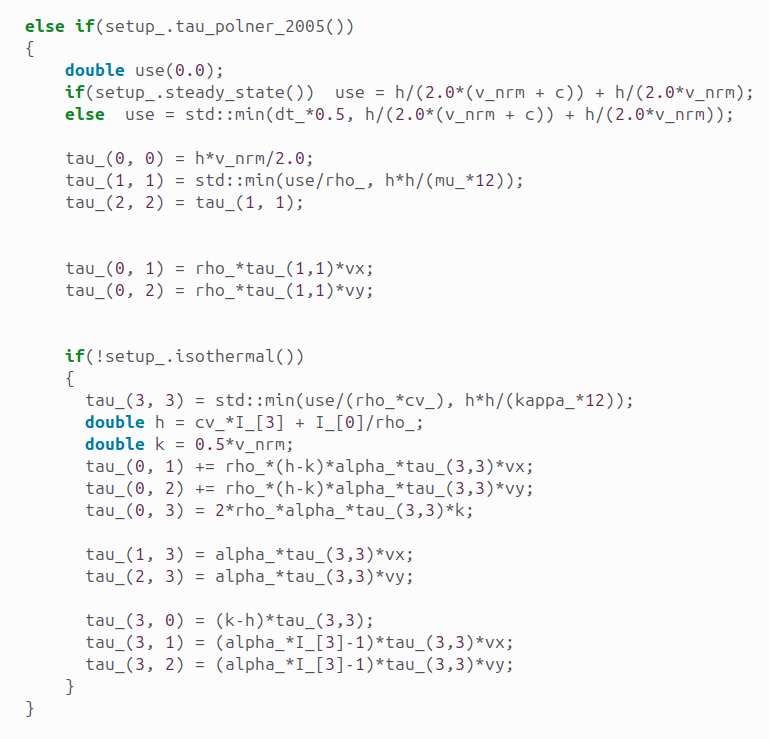

The corresponding implementation is:

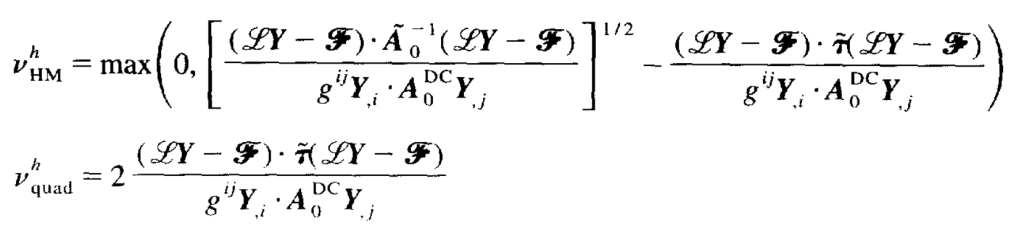

The 1998 version of discontinuity capturing, one of the most rubost, is:

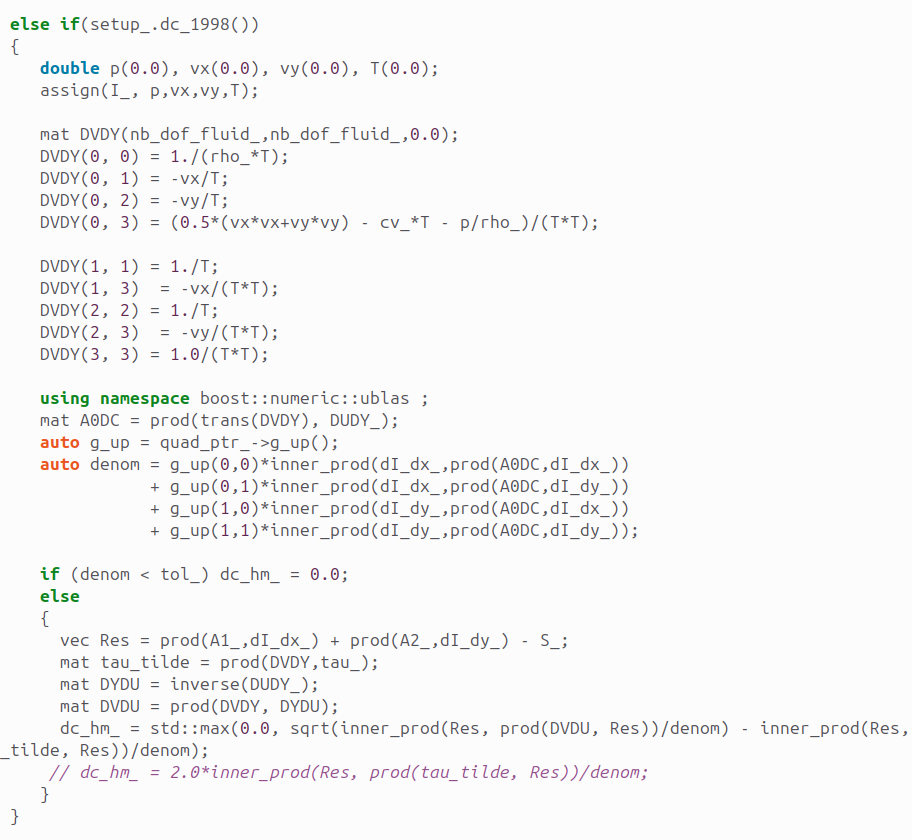

The piece of code implementing it is:

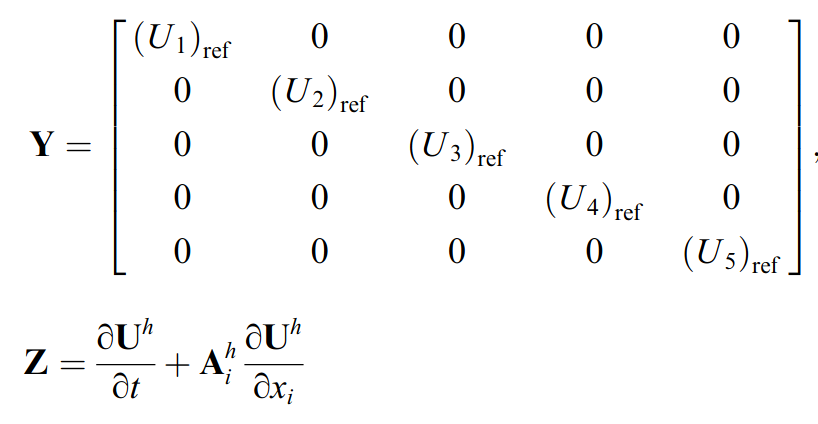

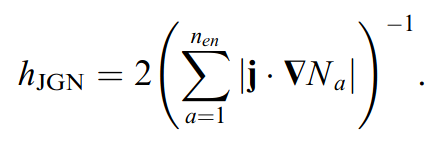

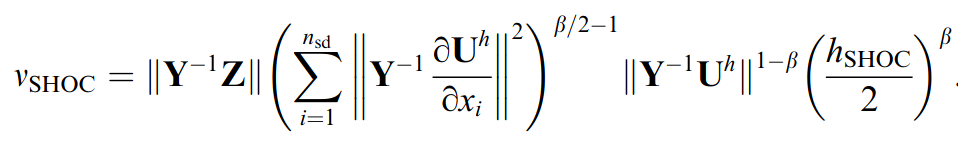

The 2006 version of the discontinuity capturing by Tezduyar & Senga (2006) reads:

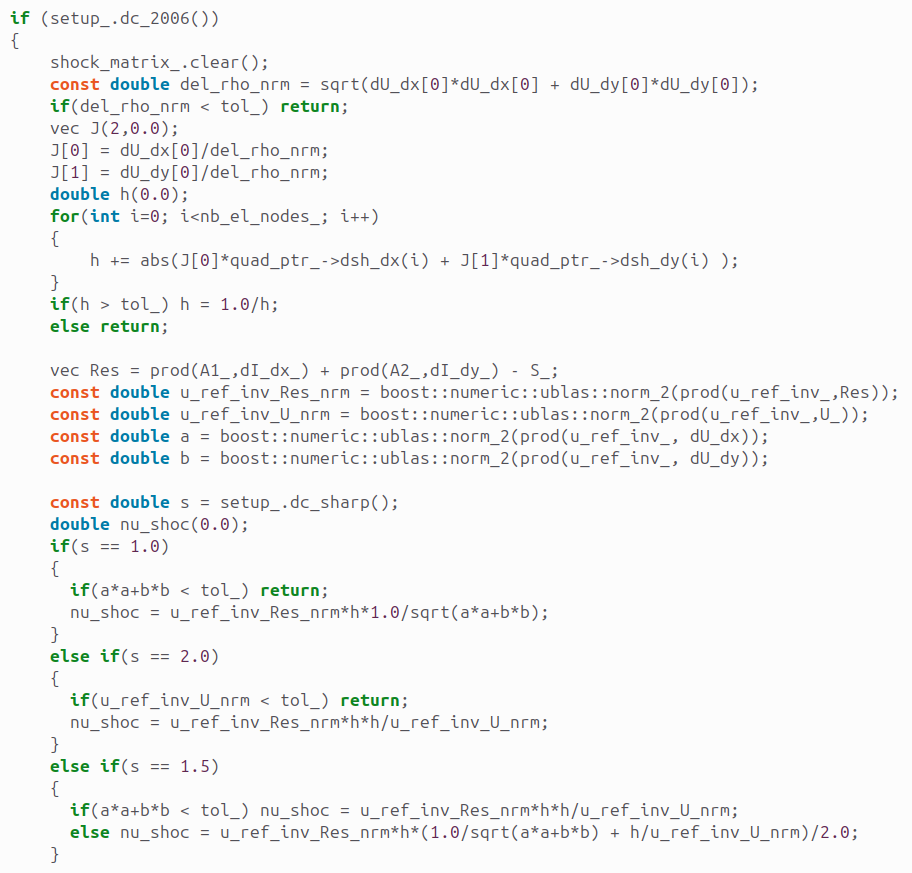

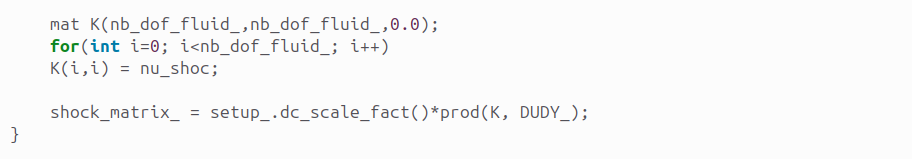

The relative implementation follows:

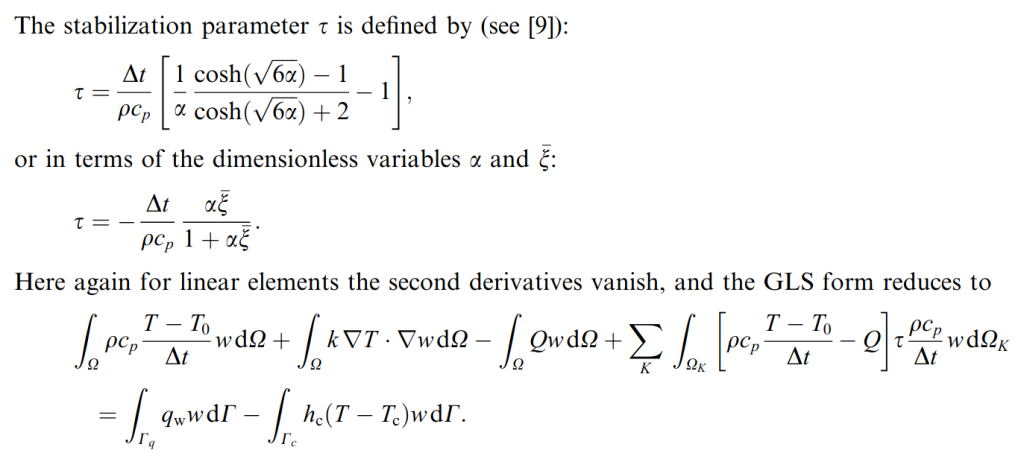

The Galerking Least Square formulation for heat conduction is formulated as:

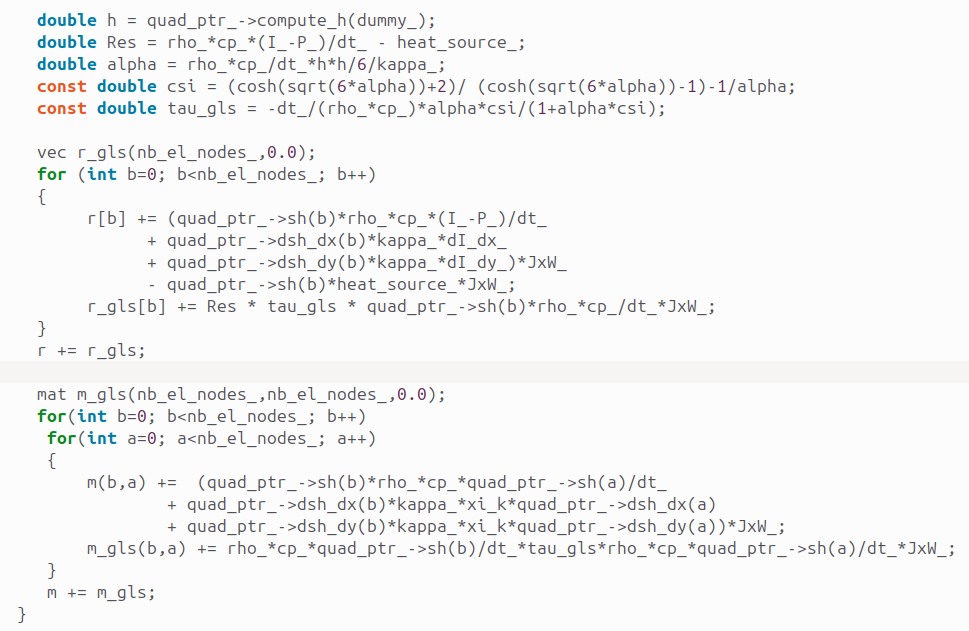

The corresponding implementation is:
